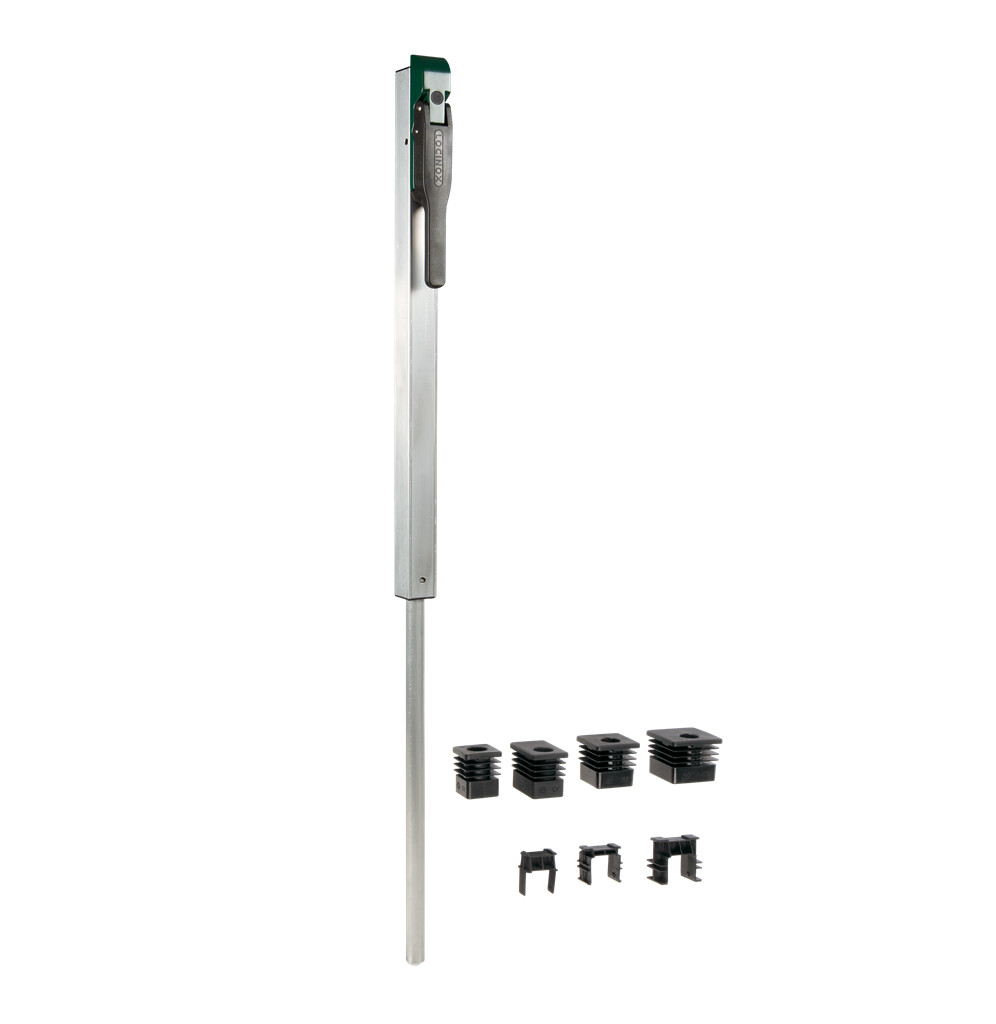

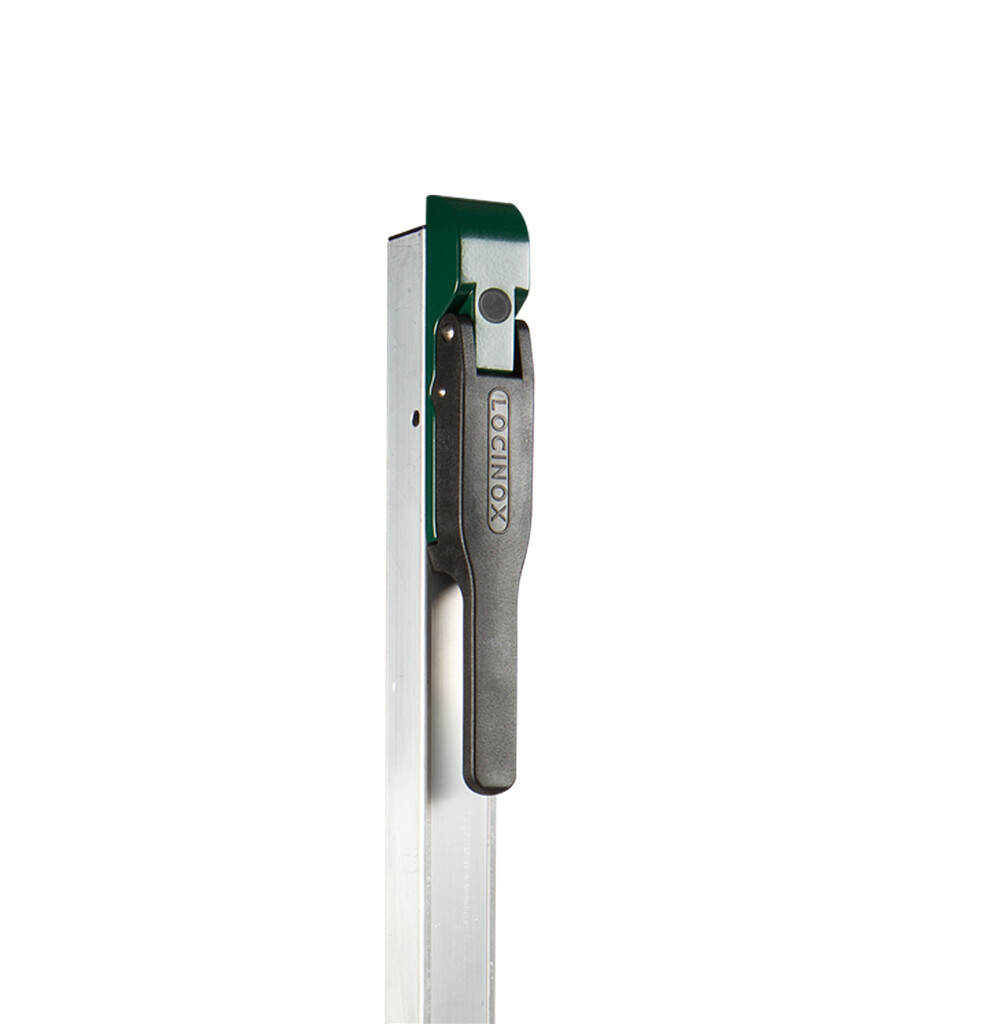

Internal drop bolt - SUBY

Item No. P00007773 - SUBY
Internal aluminium drop bolt. The drop bolt is operated at a convenient height. The aesthetical solution for all your double-wing gates.
Product specs
600560099005SILV
P00007773-6005
Internal drop bolt in RAL 6005
P00007773-6009
Internal drop bolt in RAL 6009
P00007773-9005
Internal drop bolt in RAL 9005
P00007773-SILV
Internal drop bolt in Silver
Continue shopping
Specifications
Specifications
  • Internal drop bolt in aluminium
  • User-friendly manipulation of the drop bolt at a convenient height
  • Throw: 120 mm
  • Height adjustability of the drop bolt: 100 mm
  • For gate profiles: 40x40 mm, 50x50 mm, 60x60 mm and 60x40 mm
  • Internal push spring guarantees a perfect closure (even if the drop bolt is blocked by dirt inside the ground stop) and prevents overpressure
  • Fast & easy fixing: 2 screws
  • Steel handle with black overmoulded polyamide provides the optimal combination between robustness, ergonomy and protection against corrosion
  • For profiles of 40 x 40 mm and 40 x 60 mm: max. wall thickness of 2 mm
  • For profiles of 50 x 50 mm and 60 x 60 mm: up to a wall thickness of 3 mm
Available in following RAL-colours
