Aesthetical 180° gate closer with direct connection to the hinge - RHINO

Item No. P00009905 - RHINO

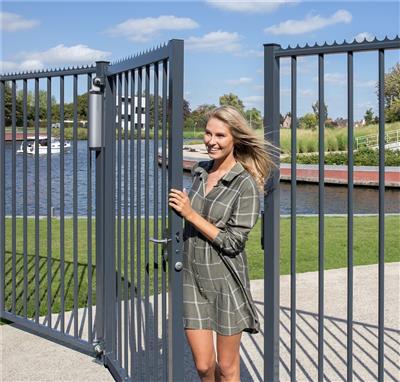

Transform your 180° hinge into a self-closing solution thanks to our Rhino hydraulic gate closer. The direct connection to the Locinox hinge guarantees the discreet look and efficient transmission of the energy required to close the gate perfectly. The anodized aluminium housing ensures a durable and smooth operation in any weather. The Rhinodrill jig guarantees an extremely efficient installation.
Product specs
9005SILV
P00009905-9005
Aesthetical 180° gate closer with direct connection to the hinge in RAL 9005
P00009905-SILV
Aesthetical 180° gate closer with direct connection to the hinge in Silver
Continue shopping
Specifications
Specifications
  • Closing speed adjustment unaffected by temperature fluctuations
  • Reversible – suitable for left- and right-opening gates
  • Direct assembly on 180° hinges M16 & M20 (GBMU, GBMU4D) & M16 (BOLTON4D)
  • Compact & aesthetic design
  • Integrated pre-tension for extremely smooth installation
  • 180° hydraulic gate closer with adjustable speed and final snap
  • Scratch resistant and corrosion free anodized aluminium housing
  • Easy to open: Max. 20 Nm
  • Bearing eyebolt is recommended (1034ROLL-M16)
Available in following RAL-colours
