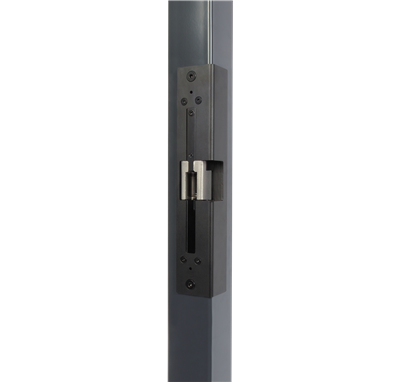

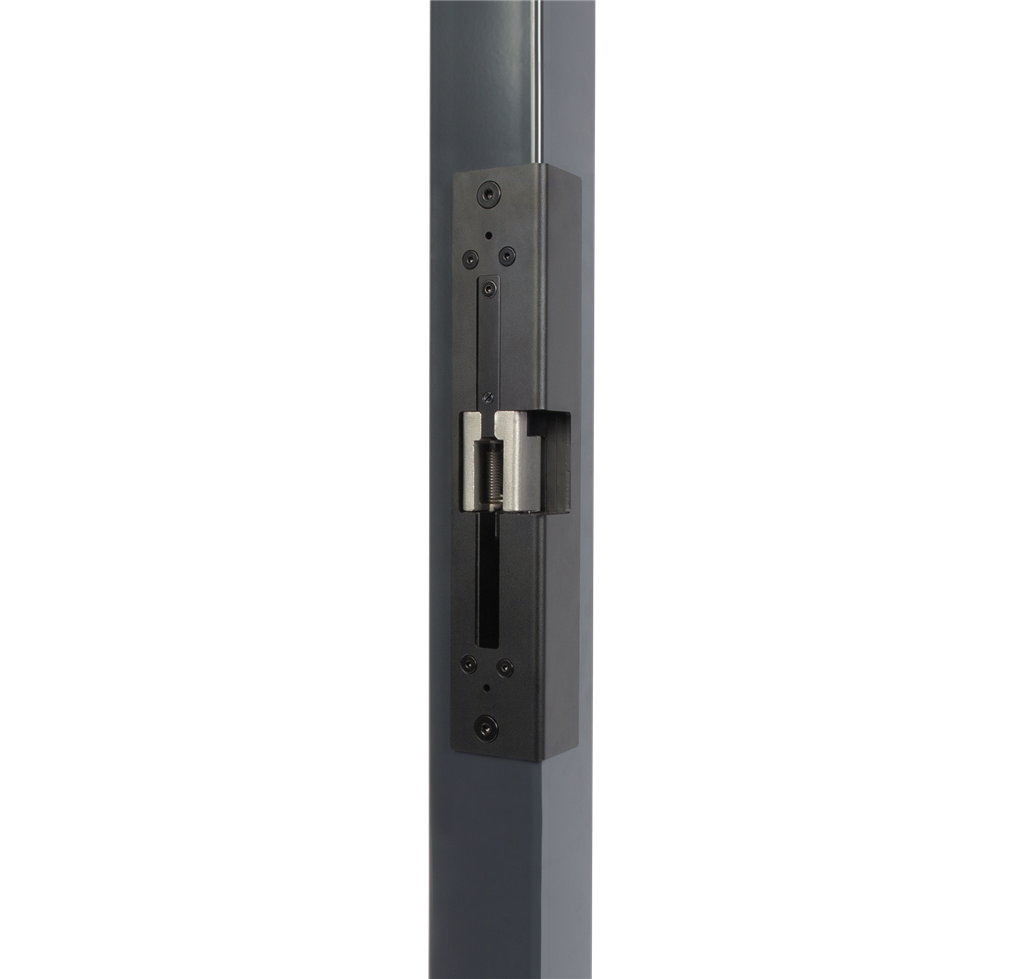

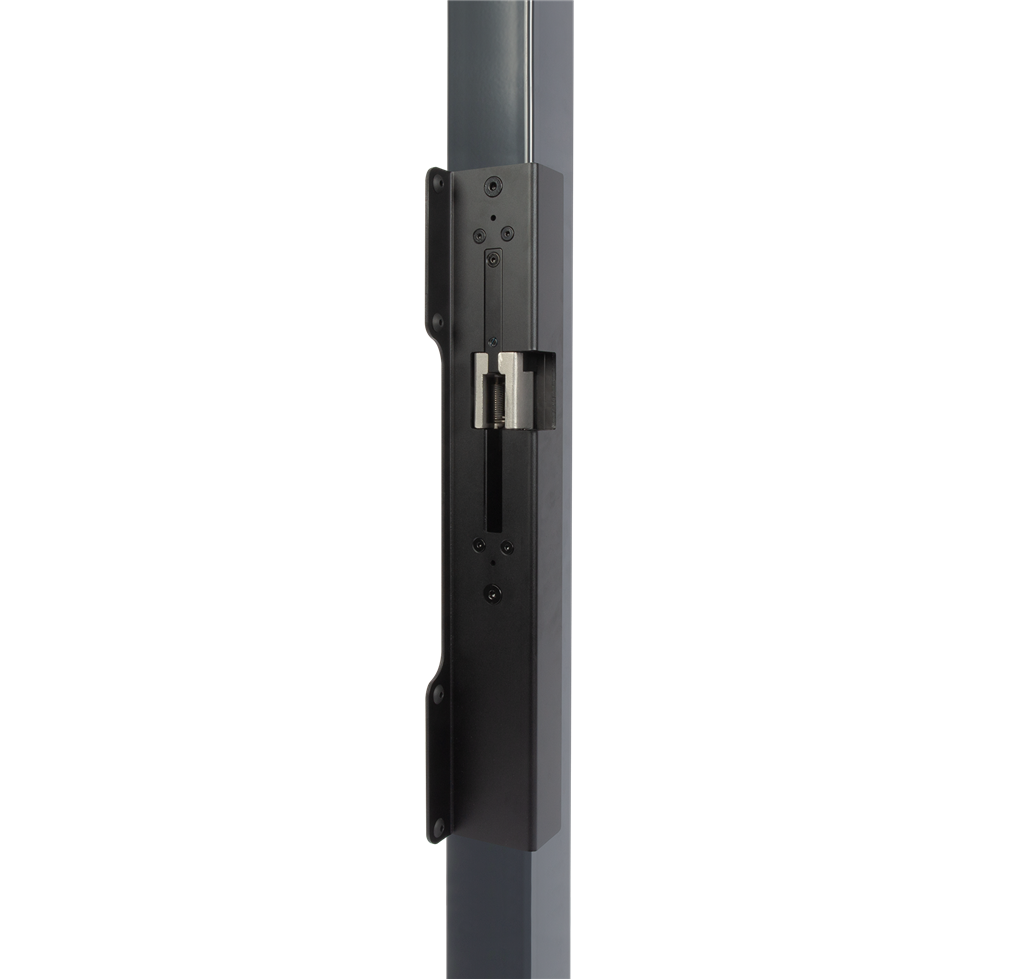

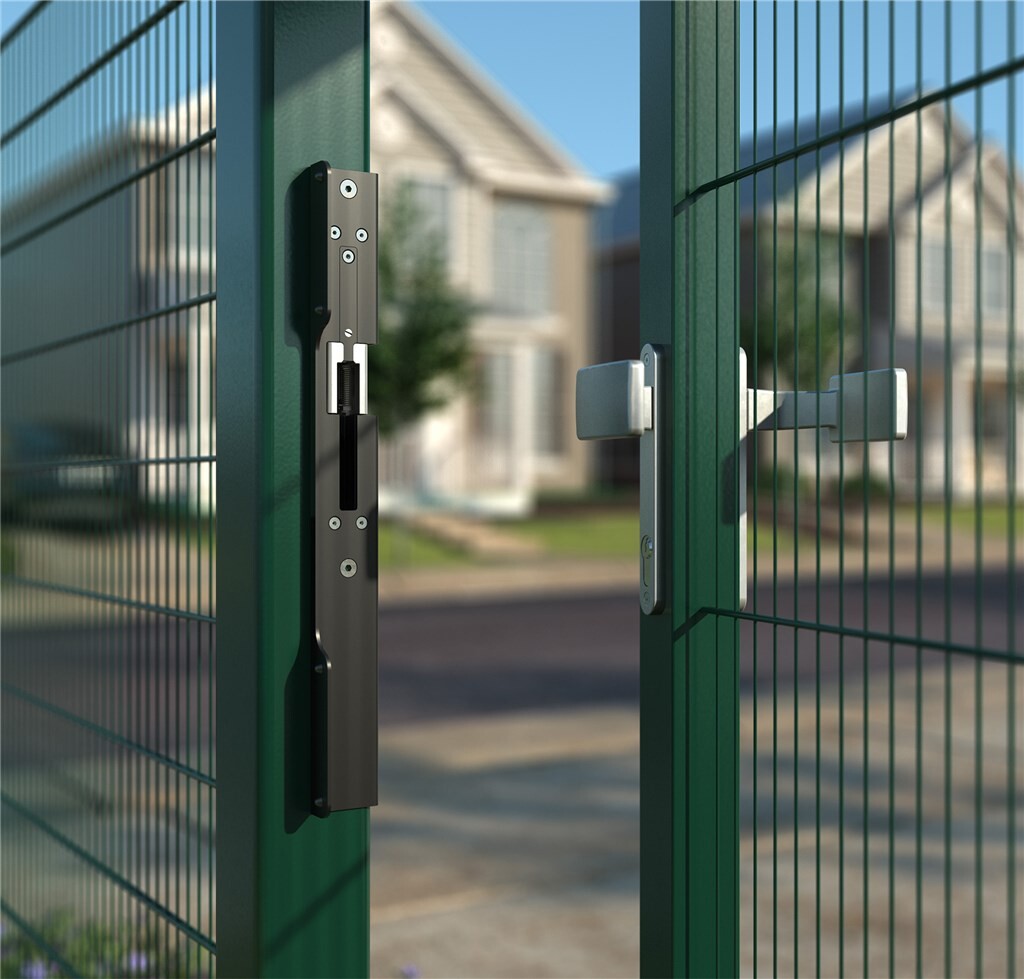

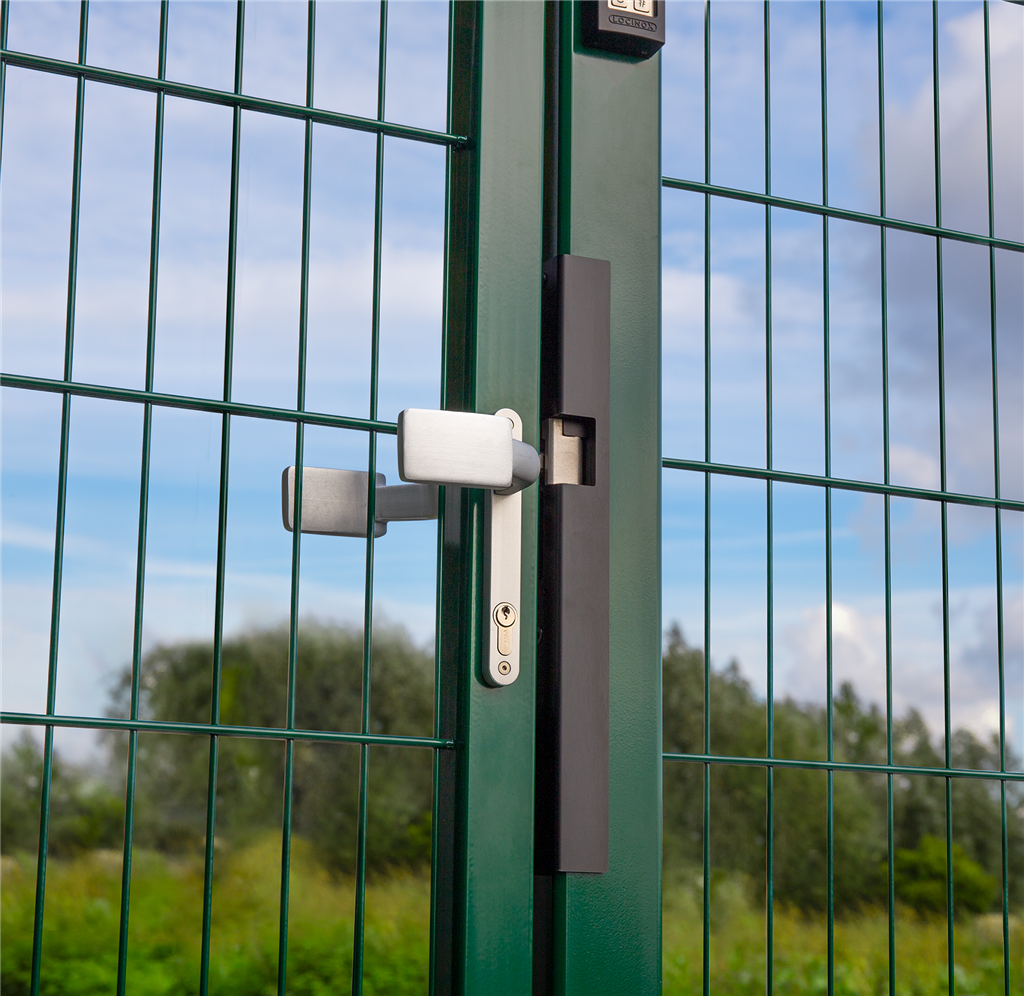

Built-in electric keep for Fortylock, Fiftylock and Sixtylock insert locks

Item No. D00000052 - INTRALEC
Elegant and discreet electric keep which is built-in the post. Easy installation thanks to the patented Click-It system. Can be installed without a strike plate and a mechanical override is possible. Intralec is available in Fail Open (Ruptura) and Fail Close (Emissa) version.
This product cannot be ordered at the moment.
No products found.
Specifications
Specifications
  • Easy left or right changing
  • Tested up to 500.000 movements
  • Resistance to pressure on the latch bolt: 300 kg
  • Corrosion-resistant: black anodized aluminium housing
  • Voltage: 12V-24V AC/DC

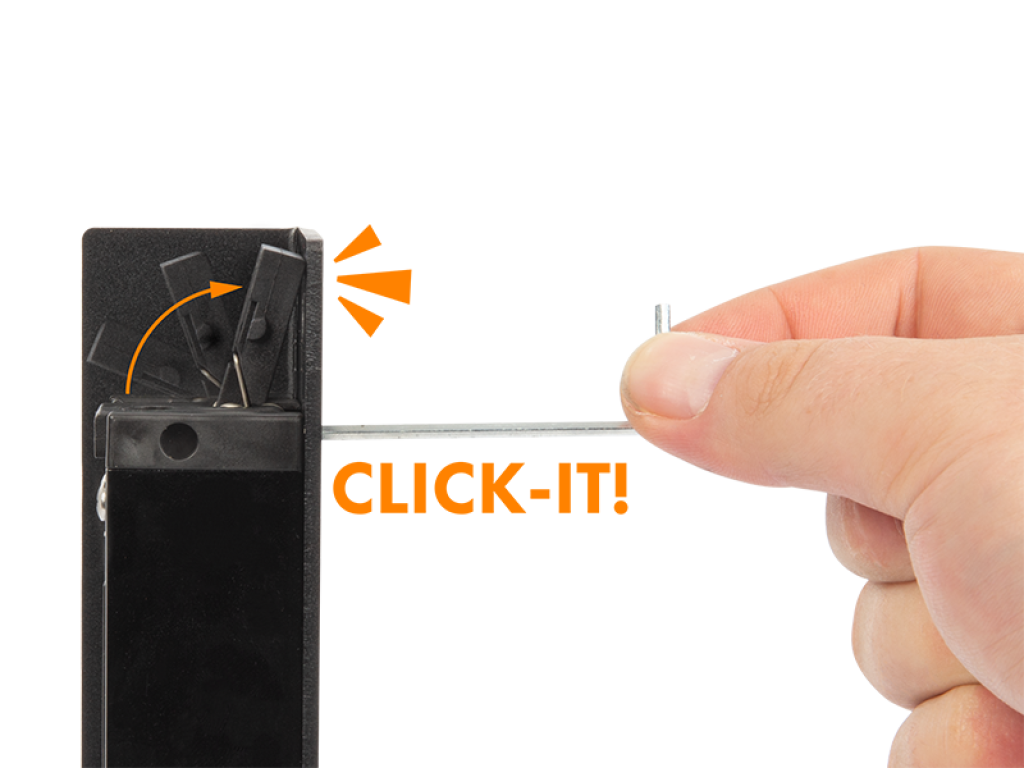

  • Fast and easy fixing with Click-it
  • Deep closure of 17,5 mm of the latch bolt
  • Available for profiles with 40 mm and 50 mm depth
  • Consumption: 10W / 12V - 0.8A / 24V - 0.4A
