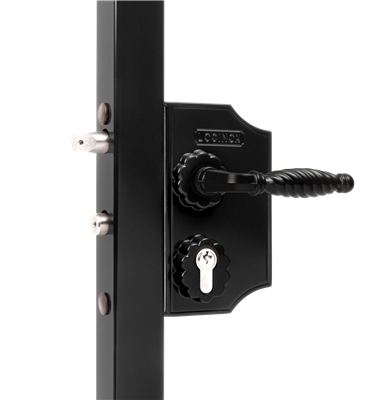

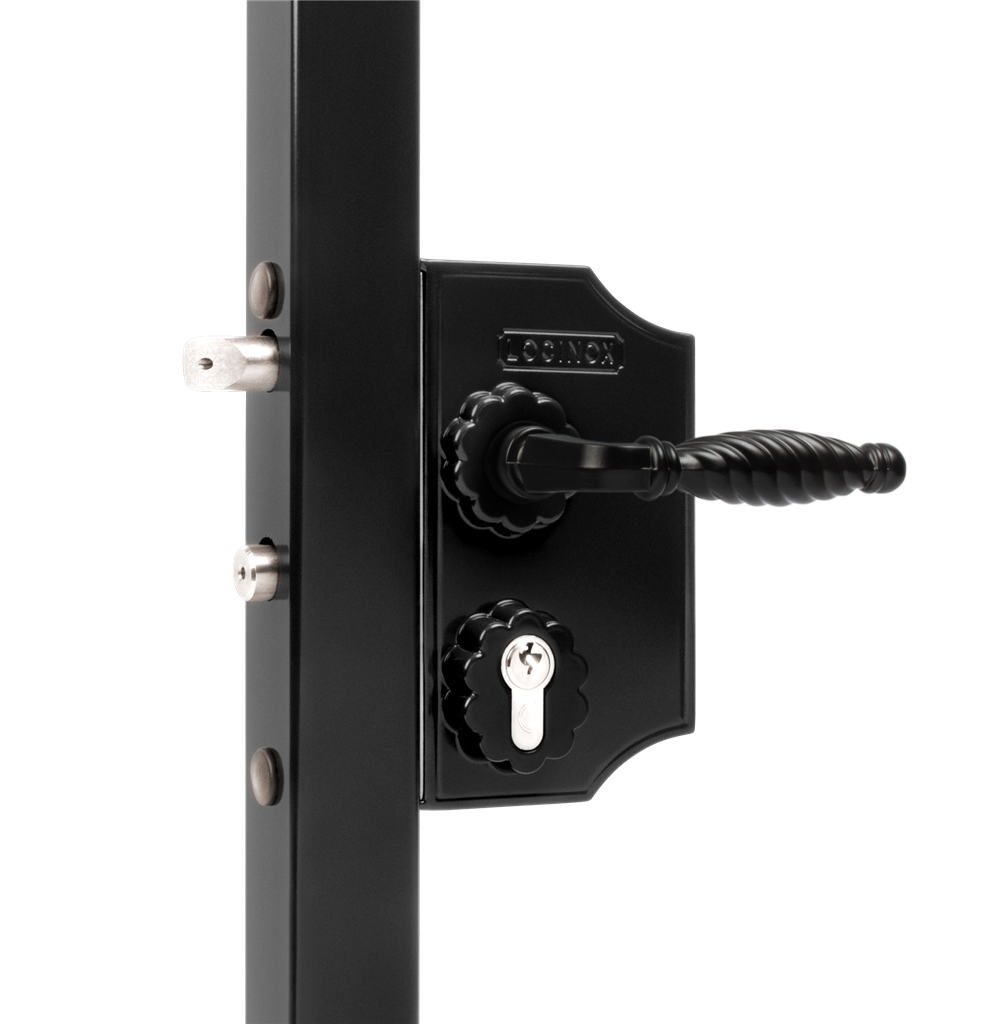

Large surface mounted ornamental gate lock

Large surface mounted ornamental gate lock - LAKQ10H2LGSXFA

Item No. P00012297 - LAKQ10H2LGSXFA

Large surface mounted ornamental gate lock for square 10 mm profiles in , 3006FA - Zamac handle pair & Cylinder: GSX - Keyed alike type X(54 mm)

Product specs

Variants

9005
Excellent ornamental lock with aluminium housing and stainless steel mechanism. We advise this lock as a standard for all your ornamental gates. The 20 mm continuous adjustability of the bolts allows a perfect alignment of your locking mechanism. A solid stainless steel deadbolt with a 23 mm throw guarantees a secure locking. Standard supplied with zamac ornamental handle pair. For a fast and highly precise installation, we recommend using the Drill-Fix drilling caliber.

9005

Excellent ornamental lock with aluminium housing and stainless steel mechanism. We advise this lock as a standard for all your ornamental gates. The 20 mm continuous adjustability of the bolts allows a perfect alignment of your locking mechanism. A solid stainless steel deadbolt with a 23 mm throw guarantees a secure locking. Standard supplied with zamac ornamental handle pair. For a fast and highly precise installation, we recommend using the Drill-Fix drilling caliber.

Continue shopping

Specifications
Drawings
Downloads

Specifications

Specifications	Easy left or right changing of the self-latching daybolt 23 mm throw of the dead bolt, in 1 turn of the key Key-operated self-latching bolt 4-hole fixing with two hexagon socket head screws 60 mm center distance of the bolts Continuous adjustment of the daybolt up to 20 mm without dismounting the lock box ISO 9227 KTL / E-coated lock box withstands 1000 hours of salt spray test
Available in following RAL-colours
Features
