Motorised hinge & gate closer in one for pedestrian gates

Motorised hinge & gate closer in one for pedestrian gates

Item No. D00000206 - MAGNUS

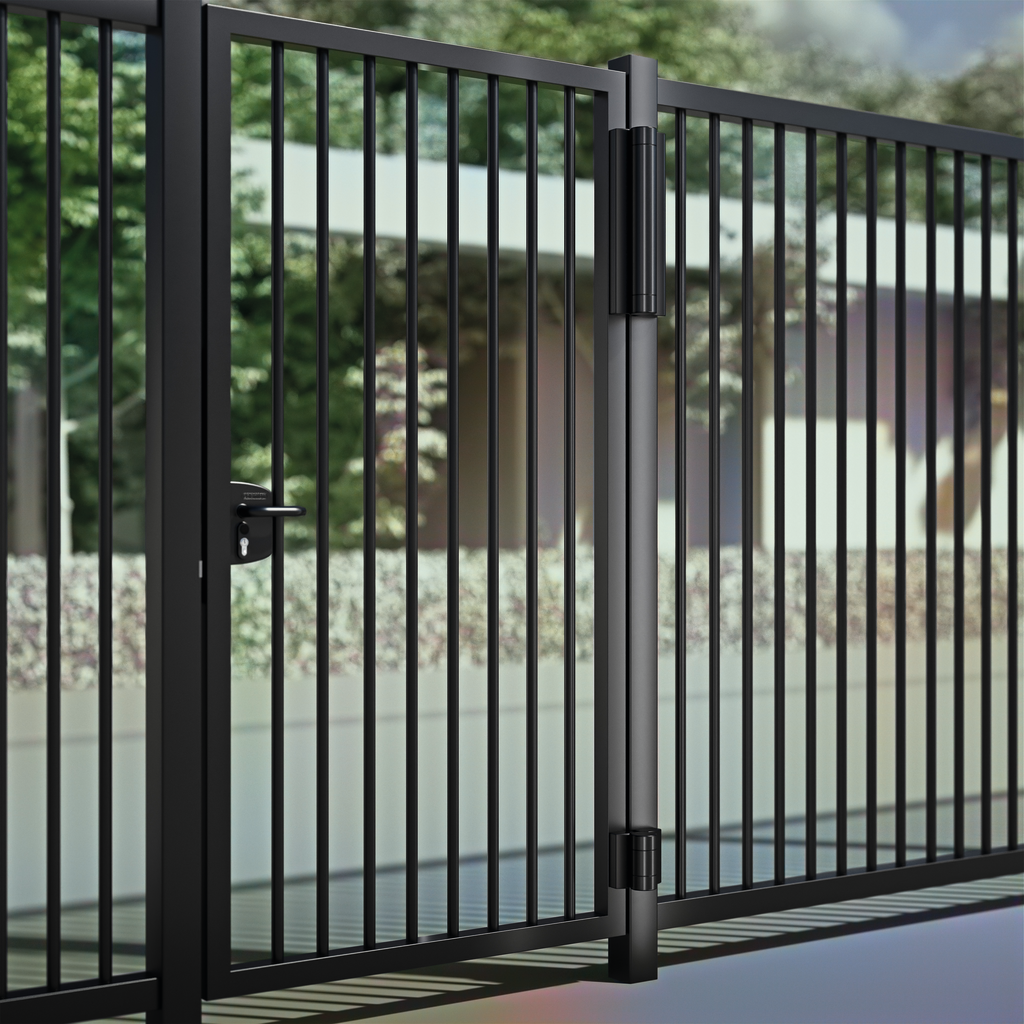

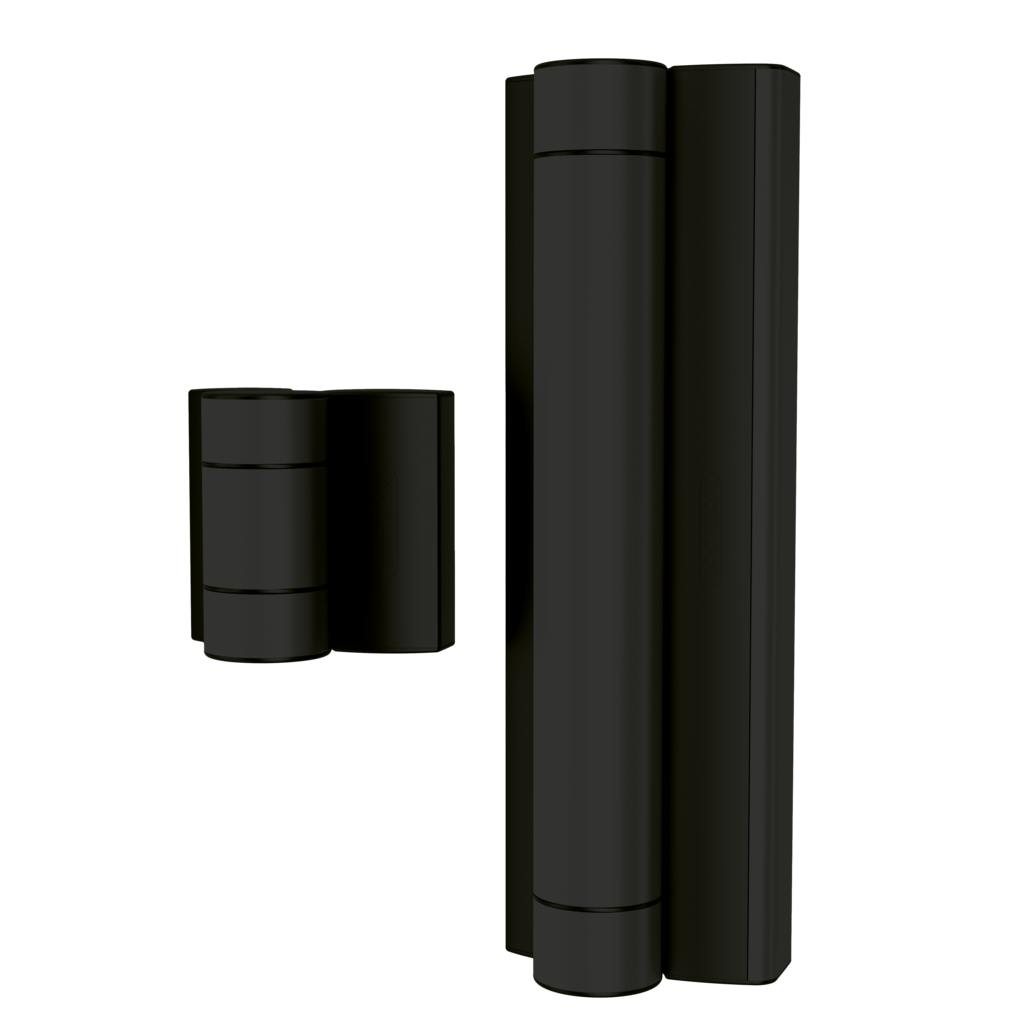

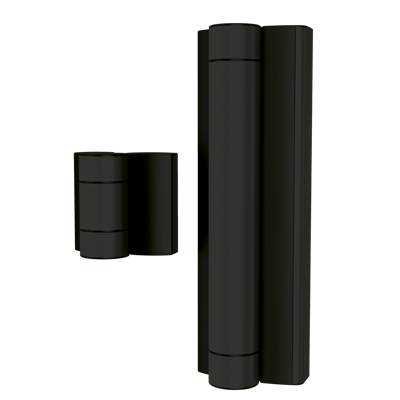

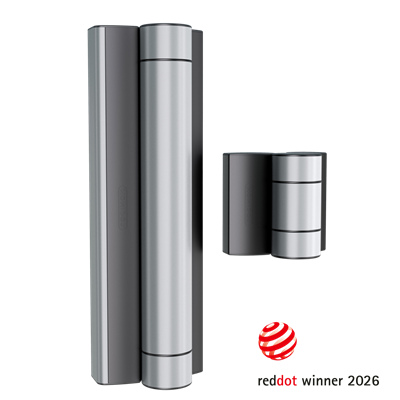

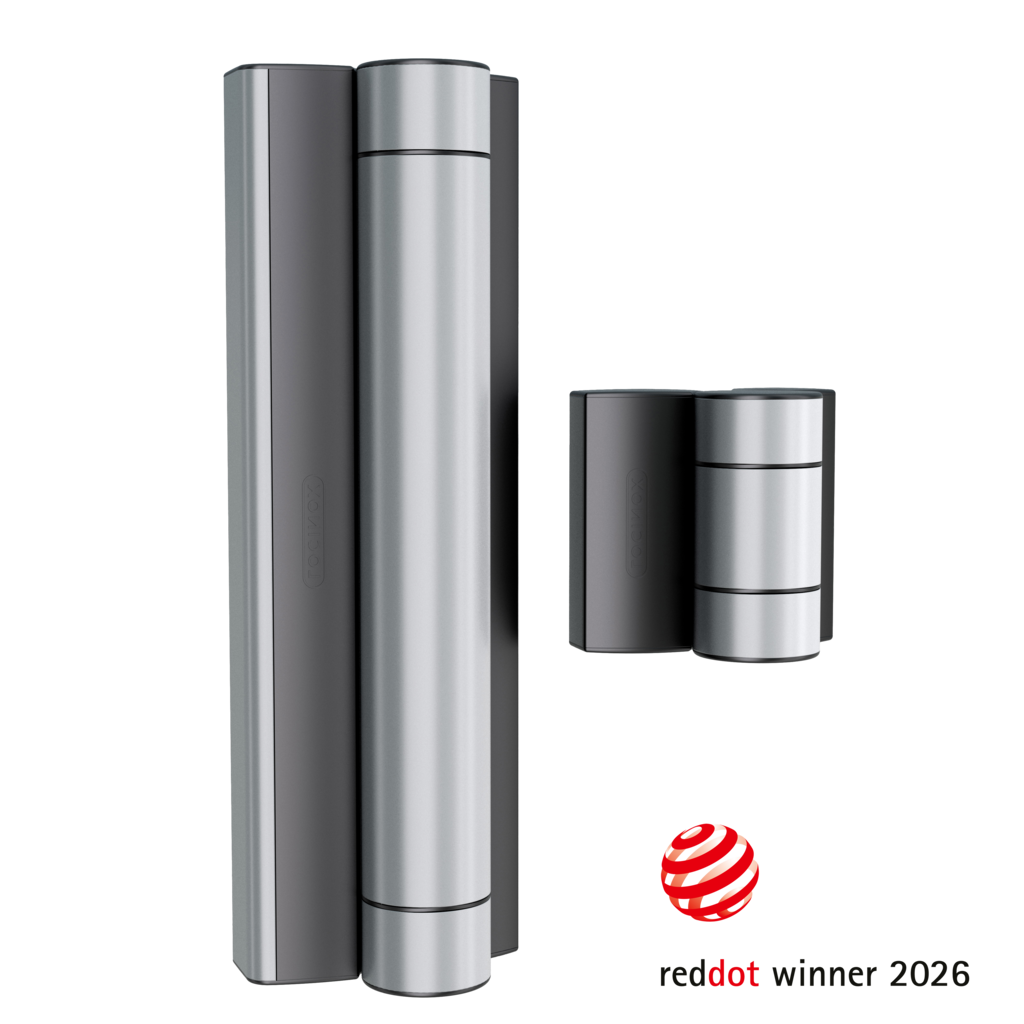

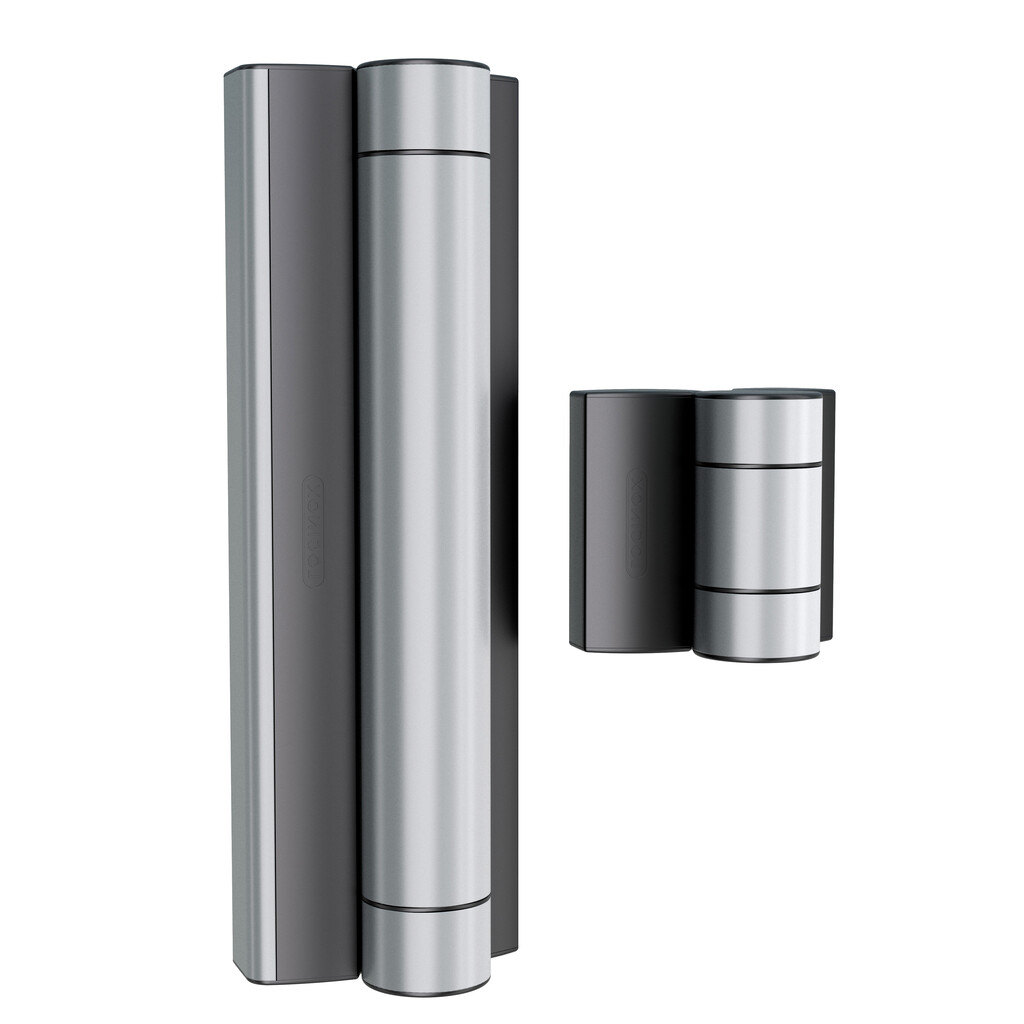

MAGNUS is a motorised gate closer and hinge in one, designed for the automation of pedestrian gates. The brushless and reversible motor is insensitive to unpredictable pedestrian behaviour, and operates in low-energy mode. The settings and access control can be configured via an intuitive app. Includes lower hinge and compact connection box.

Product specs

1 product(s) found

Motorised hinge & gate closer in one for pedestrian gates - MAGNUS

Item No. P00042163

Motorised hinge & gate closer in one for pedestrian gates - Various colours

Specifications
Drawings
Installation Movies
Downloads

Specifications

Specifications	Fast and easy fixing with Quick-Fix 2-dimensional adjustment: 2 x 20 mm, width and height Motorised gate closer with integrated electronics Steel gear box Anodized aluminium cover Compact and vandal-proof design Motor voltage: 24V DC Automated obstacle detection with reverse function Brushless motor: long lifespan and intensive usage Reversible motor with backdrivability for easy manual use - to be combined with a lock ETL-tested Fits on post profiles from 60 mm and gate profiles from 40 mm Input main power supply: 110 AC to 240V AC Configuration via app Tested up to 500.000 cycles External connection box with 3 inputs and 3 outputs (Max. 48W, 24V DC) 2m cable between motor and connection module EN 16005 Compliant 100 Nm torque For pedestrian gates up to 1500 mm wide and 200 kg
Available in following RAL-colours
Features
