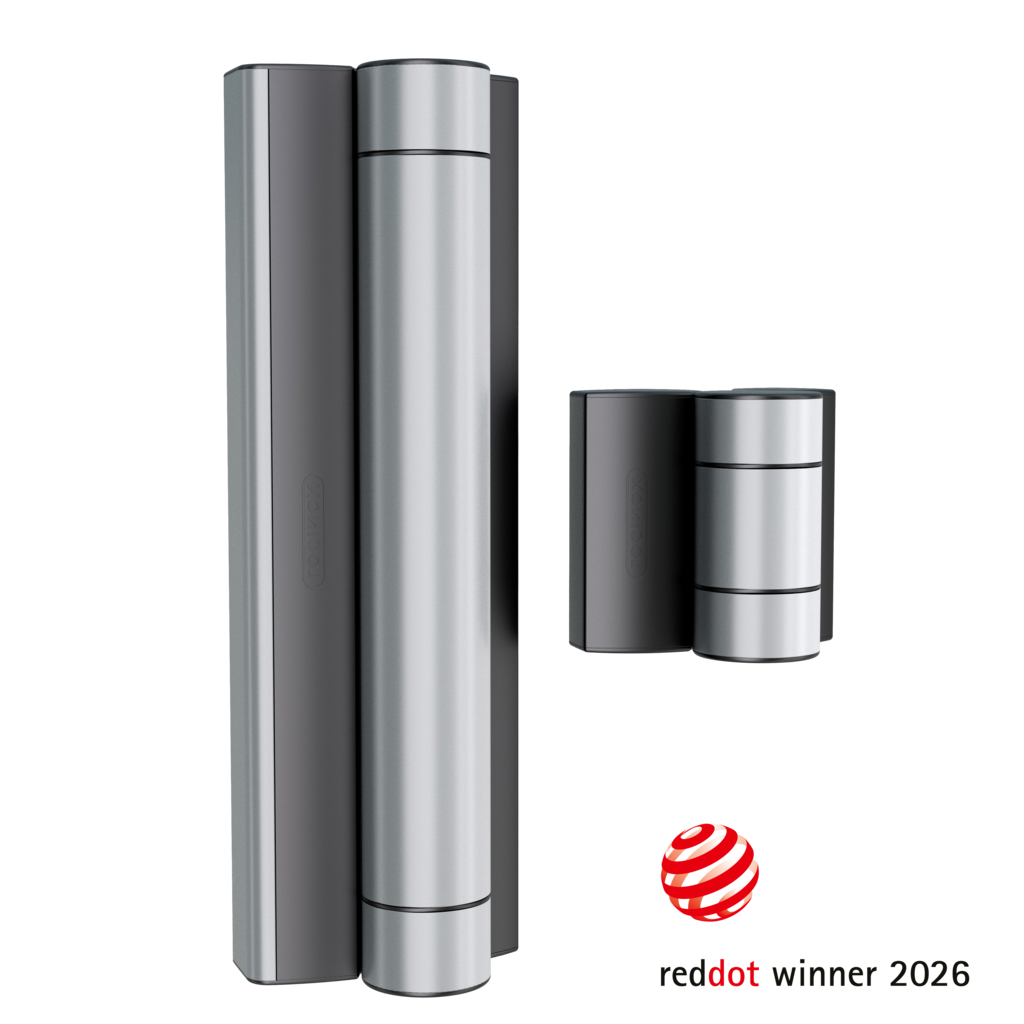

Motorised hinge & gate closer in one for pedestrian gates - MAGNUS

Item No. P00042163 - MAGNUS
Motorised hinge & gate closer in one for pedestrian gates - Various colours
Product specs
9005SILV
P00042163-9005

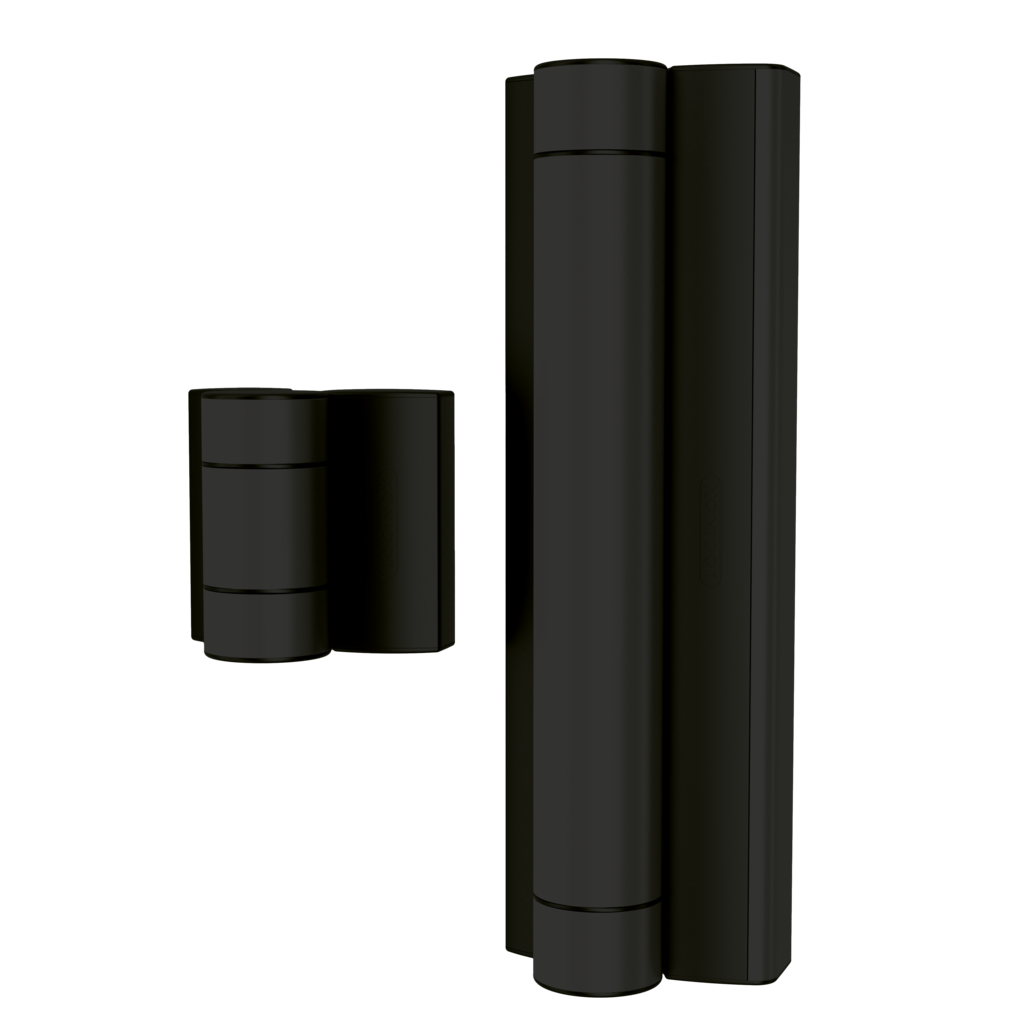

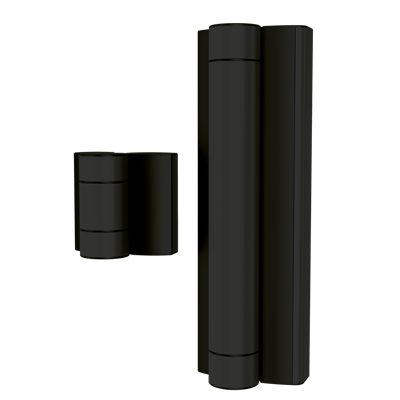

Motorised hinge & gate closer in one for pedestrian gates - Black
P00042163-SILV

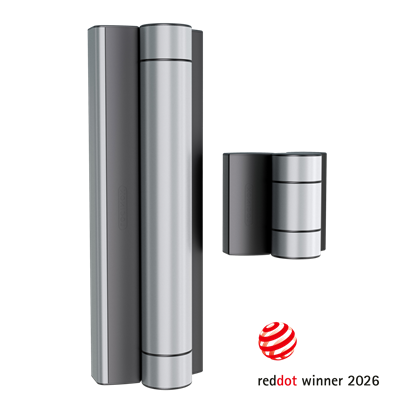

Motorised hinge & gate closer in one for pedestrian gates - Silver
Continue shopping
Specifications
Specifications
  • Fast and easy fixing with Quick-Fix
  • 2-dimensional adjustment: 2 x 20 mm, width and height
  • Motorised gate closer with integrated electronics
  • Steel gear box
  • Anodized aluminium cover
  • Compact and vandal-proof design
  • Motor voltage: 24V DC
  • Automated obstacle detection with reverse function
  • Brushless motor: long lifespan and intensive usage
  • Reversible motor with backdrivability for easy manual use - to be combined with a lock
  • ETL-tested
  • Fits on post profiles from 60 mm and gate profiles from 40 mm
  • Input main power supply: 110 AC to 240V AC
  • Configuration via app
  • Tested up to 500.000 cycles
  • External connection box with 3 inputs and 3 outputs (Max. 48W, 24V DC)
  • 2m cable between motor and connection module
  • EN 16005 Compliant
  • 100 Nm torque
  • For pedestrian gates up to 1500 mm wide and 200 kg
Available in following RAL-colours
