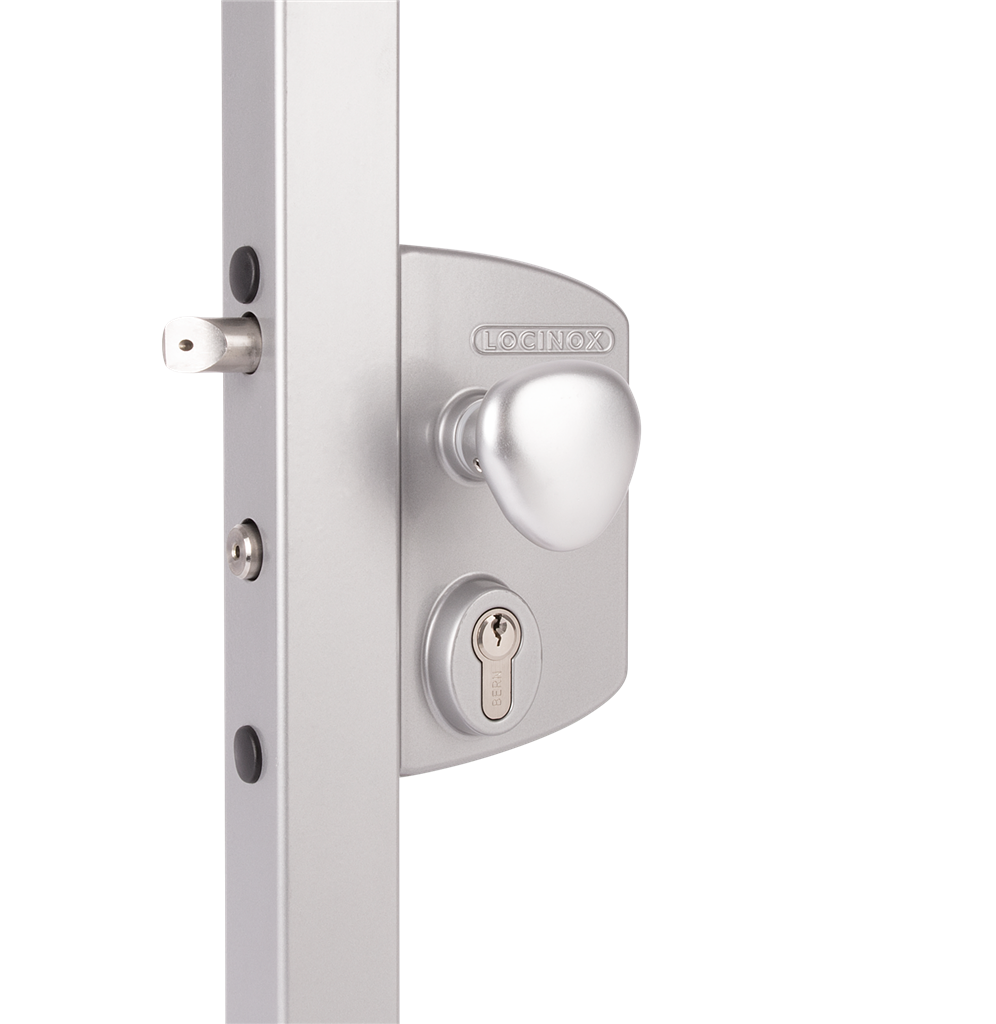

Surface mounted electric gate lock with Fail Close functionality - LIKQ30U2LGSXRB

Item No. P00038339 - LIKQ30U2LGSXRB

Surface mounted electric gate lock with Fail Close functionality for square 30 to 50 mm profiles in RAL 9005, 3006RB - Black aluminium round knob & Cylinder: GSX - Keyed alike type X(54 mm)

Product specs

Variants

9005
Electric gate lock made of excellent quality with aluminium housing and stainless steel mechanism. This gate lock blocks the handles when there is no power (Fail Close). The 20 mm continuous adjustability of the bolts allows a perfect latching / locking of the mechanism. A solid stainless steel deadbolt with 23 mm throw guarantees a secure closure. For a fast and highly precise installation, we recommend using the Drill-Fix drilling jig.

9005

Electric gate lock made of excellent quality with aluminium housing and stainless steel mechanism. This gate lock blocks the handles when there is no power (Fail Close). The 20 mm continuous adjustability of the bolts allows a perfect latching / locking of the mechanism. A solid stainless steel deadbolt with 23 mm throw guarantees a secure closure. For a fast and highly precise installation, we recommend using the Drill-Fix drilling jig.

Continue shopping

Specifications
Drawings
Downloads

Specifications

Specifications	23 mm throw of the dead bolt, in 1 turn of the key Key-operated self-latching bolt 4-hole fixing with two hexagon socket head screws Continuous adjustment of the daybolt up to 20 mm without dismounting the lock box Voltage: 12V AC/DC Current: 0,3A Blocking or releasing of the handles Easy left or right changing Interchangeable with all Locinox surface mounted locks ISO 9227 KTL / E-coated lock box withstands 1000 hours of salt spray test Fail Close: Lock is closed when power is interrupted
Available in following RAL-colours
Features

Drawings

Downloads

Surface mounted electric gate lock with Fail Close functionality - LIKQ30U2LGSXRB

2D/3D drawings

Installation instructions

Gate Closer Brochure
